Construction of Reservoir Railway Station – Innovative Window Solutions – Aluminium Windows and Doors

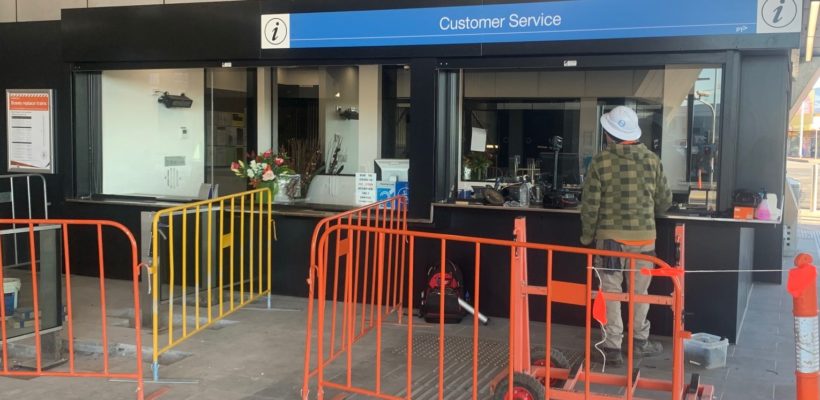

Img 5248

Under Contract to IBuild Constructions – Innovative Window Solutions, North Geelong have manufactured, supplied and installed Aluminium Windows and Doors as specified.

The installation process was completed in a variety of stages with some of the components (after initially having been manufactured in our North Geelong factory), then being transported to IBuild’s premises at Campbellfield and assembled by our IWS tradesmen, as seen in the first group of pictures below. The remainder were completed onsite at Reservoir Railway Station.

Frame finish is Dulux Duratec Zeus Matt Black powdercoat
– Frames – Capral 419 DG Adaptor Frame
– Capral 400 Series
– Frameless 25mm

Dorma frameless Automatic Door Operator to IWS manufactured Sliding door

A variety of glass has been installed including –
– 11.52mm AssaultGuard Clear
– 6mm PerformaTech toughened
– 9.52mm Colourback toughened
– 8.76 Observation Mirror Laminated
– 6.5 Hush laminated White Translucent
– Glass Speaker Holes

IWS custom-made aluminium fins/shrouds were also fitted to windows with Duratec Zeus Matt Black powdercoat finish.
